Flexible Handheld Laser Welding, Cleaning and Cutting in One Machine

The 4-in-1 Handheld Laser Welding Machine combines laser welding, laser cleaning, laser cutting, and weld seam cleaning in one versatile system.With a 1500W–3000W fiber laser source, industrial water cooling system, and heavy-duty handheld laser welding gun, the machine is designed for flexible metal processing in workshops, fabrication plants, maintenance operations, and small-batch production.

Unlike CNC or robotic laser welding systems, a handheld laser welding machine allows the operator to directly control the welding head and move it along the workpiece manually. This provides greater flexibility when working with different shapes, positions, and workpiece sizes.

4 in 1 Handheld Laser Welding Machine

One Laser Machine, Four Functions

The main advantage of this system is that one machine can perform four different laser processing functions.

1. Laser Welding

The primary function is handheld fiber laser welding.The operator manually guides the welding gun along the joint, making the machine suitable for different workpiece shapes and welding positions.It can be used for:

• Stainless steel
• Carbon steel
• Aluminum
• Brass
• Other compatible metals

Depending on the application, single wire feed and double wire feed are available

2. Laser Cleaning

The same laser platform can be configured for surface cleaning applications.Laser cleaning can remove contaminants such as:

• Rust
• Oxide layers
• Oil
• Grease
• Paint
• Coatings
• Surface residues

It is a non-contact process and does not require chemical cleaning agents or abrasive media.

3. Laser Cutting

With the appropriate cutting configuration, the machine can also perform light-duty metal cutting.It can be used for applications such as:

• Sheet metal trimming
• Small metal parts
• On-site cutting
• Maintenance work
• Custom fabrication

Cutting capability depends on laser power, material, thickness, cutting head, gas supply, and process parameters.

The machine should therefore be configured according to the actual cutting requirements rather than assuming one maximum thickness for all materials.

4. Weld Seam Cleaning

After welding, oxidation, discoloration, and surface residue may remain around the weld area, especially on stainless steel.The cleaning function can be used to treat the welded area and improve its surface appearance.This is particularly useful when the finished product requires a cleaner appearance without relying on manual grinding or chemical treatment.

Laser cleaning application

Flexible Handheld Operation

The biggest advantage of a handheld laser welding machine is operational flexibility.A CNC welding machine requires the workpiece to be positioned within the machine’s working area.A robotic welding system requires the workpiece, robot reach, fixture, and welding path to be coordinated.A handheld laser welding machine works differently.The operator can move the welding head directly to the required welding position.This makes it particularly useful for:

• Large workpieces
• Irregular components
• Long weld seams
• On-site welding
• Small-batch production
• Different product models
• Maintenance and repair
• Workpieces that are difficult to fixture

For example, when welding a large stainless steel frame, the operator can move around the workpiece and access different welding positions without moving the entire component onto a CNC platform.

Designed for Flexible Metal Welding

The handheld welding gun provides direct control over the welding position.The operator can adjust the welding direction according to the actual joint and workpiece geometry.Typical applications include:

Sheet Metal Fabrication

• Stainless steel cabinets
• Metal enclosures
• Kitchen equipment
• Sheet metal assemblies
• Metal furniture

Machinery Manufacturing

• Machine frames
• Equipment housings
• Mechanical components
• Industrial structures

Metal Fabrication

• Stainless steel products
• Aluminum structures
• Carbon steel components
• Metal frames
• Custom fabricated parts

Maintenance and Repair

The handheld design is also useful when the workpiece cannot easily be transported to a fixed welding machine.

Super Handheld Laser Welding Gun

The welding gun is one of the most frequently used components in a handheld laser welding system.For this machine, ZS Machinery uses a super handheld laser welding system designed for continuous industrial operation.The welding gun integrates the optical path, protective components, gas delivery, and welding controls into a compact handheld assembly.Depending on the selected configuration, the gun can provide:

• Ergonomic handheld operation
• Wobble welding
• Adjustable welding width
• Integrated control functions
• Protective lens system
• Shielding gas delivery
• Safety interlock

A suitable welding head helps the operator maintain a stable welding process while moving the laser manually along the workpiece.

Industrial Water Cooling System

A 1500W–3000W handheld laser welding system generates substantial heat during continuous operation.For this reason, the machine uses an industrial water chiller rather than relying only on air cooling.The water-cooling system helps maintain stable operating temperatures for the laser source and other heat-sensitive components.Benefits include:

• Stable thermal management
• Suitable for continuous operation
• Improved system reliability
• Reduced thermal fluctuation
• Better suitability for higher-power laser sources

The chiller capacity is selected according to the laser power and system configuration.

1500W, 2000W or 3000W?

The correct laser power depends on the material, thickness, joint design, welding speed, and production requirements.

1500W

Suitable for many general sheet metal welding applications and lighter-duty fabrication.

2000W

A versatile configuration for a wider range of metal welding applications and thicker workpieces.

3000W

Provides higher available laser power for applications requiring greater penetration, higher welding speed, or thicker materials.Higher power does not automatically mean better welding results.The appropriate configuration should be selected according to the actual workpiece and required welding process.

Key Advantages

Flexible Handheld Operation

Move the welding head directly to the required position without being limited to a fixed CNC platform.

4-in-1 Functionality

One machine combines welding, cleaning, cutting, and weld seam cleaning.

Industrial Water Cooling

Provides stable thermal management for continuous operation.

SuperWelding System

Designed for industrial metal welding applications with an ergonomic handheld welding gun and integrated control system.

Suitable for Different Workpieces

The handheld configuration is suitable for large, irregular, long, or difficult-to-fixture components.

Expandable Configuration

Optional wire feeder, different laser heads, cleaning configurations, and other accessories can be selected according to the application.

How to Choose the Right Handheld Laser Welding Machine

Before selecting a 1500W, 2000W, or 3000W system, consider the following:

Material

Different metals have different thermal and optical characteristics. Aluminum and copper, for example, may require different process parameters from stainless or carbon steel.

Material Thickness

Laser power should be selected according to the required welding thickness and joint design.

Welding Joint

Consider whether you are welding:

• Butt joints
• Lap joints
• Corner joints
• Fillet joints
• Overlap joints

Production Volume

For occasional fabrication and varied workpieces, handheld welding provides high flexibility.For highly repetitive, high-volume production, a CNC or robotic laser welding system may provide better automation.

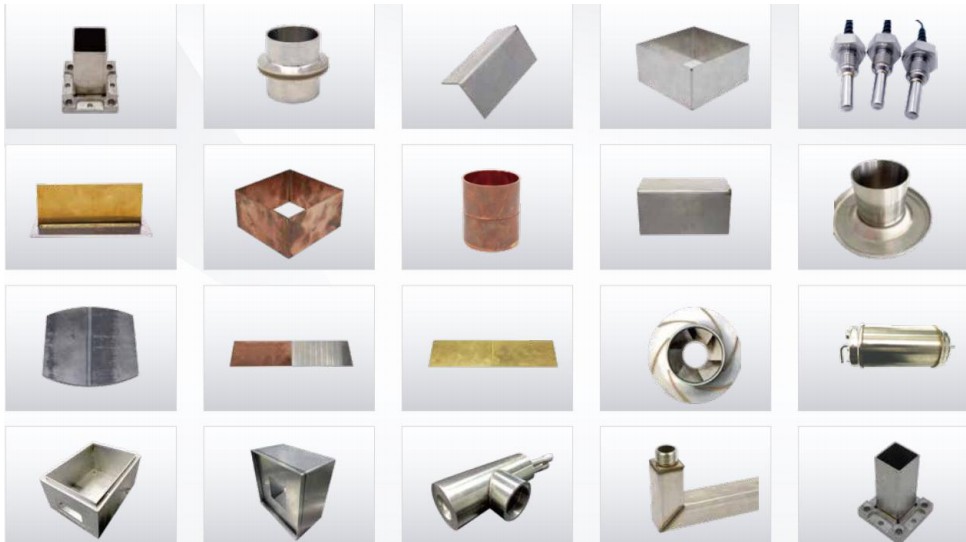

Laser Welding Samples

Handheld Laser Welding vs CNC and Robot Welding

Different laser welding systems are designed for different production requirements.

The handheld system is particularly attractive when workpieces vary in size and shape, or when the operator needs to access different areas of a large component quickly.

Why Choose ZS Machinery?

ZS Machinery focuses on practical industrial laser equipment rather than simply combining a laser source with a low-cost machine cabinet.For our handheld laser welding systems, attention is given to the complete configuration, including:

• Laser source
• Water chiller
• Handheld welding gun
• Optical system
• Control system
• Wire feeder
• Electrical components
• Safety system

The machine is designed for practical workshop use, with configurations available for different materials, thicknesses, and processing requirements.Our team can also help determine whether a handheld, CNC, or robotic laser welding system is more appropriate for your application.

Get a 4-in-1 Handheld Laser Welding Solution

If you need a flexible laser system for welding, cleaning, cutting, and weld seam cleaning, the ZS Machinery 4-in-1 handheld laser welding machine provides multiple processing functions in one water-cooled system.

Send us your:

• Material
• Thickness
• Workpiece photos
• Welding requirements
• Cutting requirements
• Cleaning requirements
• Expected production volume

We can recommend the appropriate 1500W, 2000W, or 3000W configuration and arrange sample testing when required.
